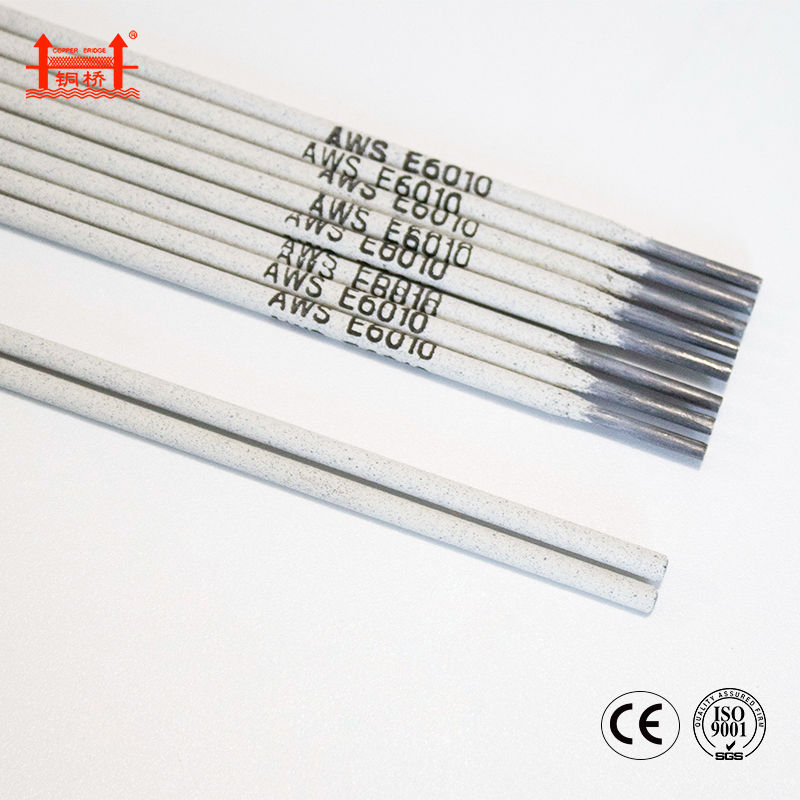

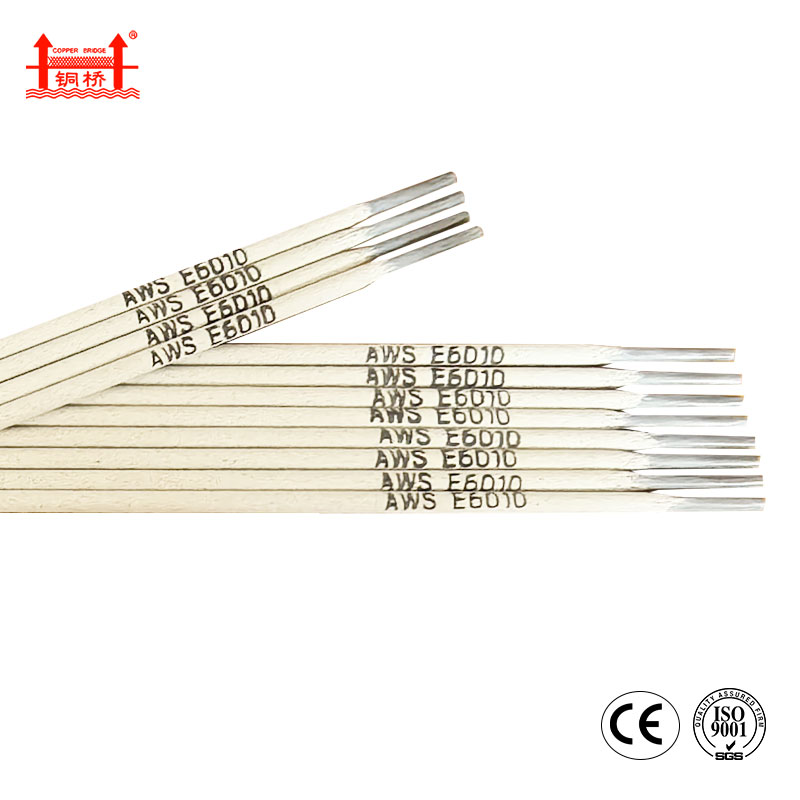

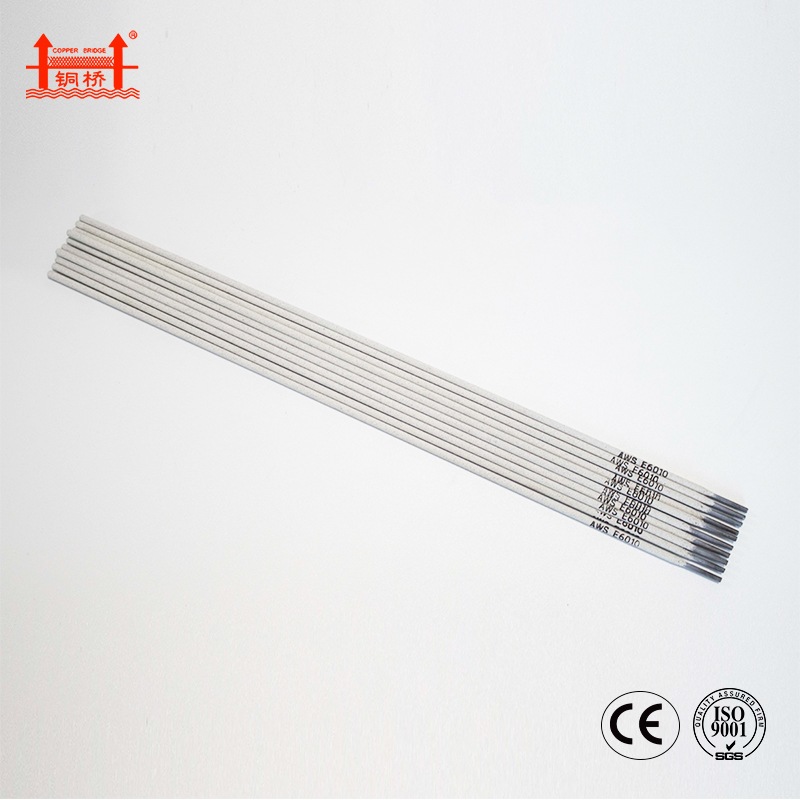

Copper Bridge E6010 Stick Electrode
DESCRIPTION
Copper Bridge E6010 is a cellulosic-coated stick electrode for carbon steel. It uses DC reverse connection and is suited to all-position welding of pipeline circumferential seams in the field, especially verticaldown root passes where one-side welding and two-side formation are required.
▶ AVAILABLE DIAMETERS
3/32 in, 1/8 in, 5/32 in, 3/16 in
2.5 mm, 3.2 mm, 4.0 mm, 5.0 mm
▶ PACKAGING
1.1 lb, 2.2 lb, 4.4 lb, 5.5 lb, 8.8 lb, 11 lb
▶ APPLICATIONS
Mainly used for welding carbon steel of corresponding strength grades. Widely used for pipeline bottom welding and circumferential seam welding.
▶ WELDING PROCESS
SMAW / Stick Welding
▶ POLARITY
DCEP (DC reverse)
▶ WELDING POSITIONS
All position
CHEMICAL COMPOSITION OF DEPOSITED METAL (WT.%)
| Element | C | Mn | Si | P | S | Ni | Cr | Mo | V |
| AWS Requirement | ≤0.20 | ≤1.20 | ≤1.00 | N.S. | N.S. | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
| Example value | 0.083 | 0.71 | 0.13 | 0.017 | 0.017 | 0.024 | 0.011 | 0.007 | 0.008 |
MECHANICAL PROPERTIES OF DEPOSITED METAL
| Property | AWS Requirement | Copper Bridge Typical |
| Tensile Strength | ≥430 MPa (62 ksi) | 479 MPa (69 ksi) |
| Yield Strength | ≥330 MPa (48 ksi) | 390 MPa (57 ksi) |
| Elongation | ≥22% | 28% |
| Impact Value (Charpy V-Notch) | ≥27 J at -30°C (-22°F) | 100 J at -30°C (-22°F) |
RECOMMENDED WELDING PARAMETERS
| Diameter | 3/32 in (2.4 mm) | 1/8 in (3.2 mm) | 5/32 in (4.0 mm) | 3/16 in (5.0 mm) |
| Flat / Horizontal (A) | 60–90 | 70–110 | 110–150 | 150–200 |
| Vertical / Overhead (A) | 50–80 | 60–100 | 100–140 | 140–180 |
NOTES
1. This welding electrode is prone to moisture and should be carefully stored.
2. If the welding electrode is damp, it can be baked at 70°C (158°F) for 30–60 minutes.
