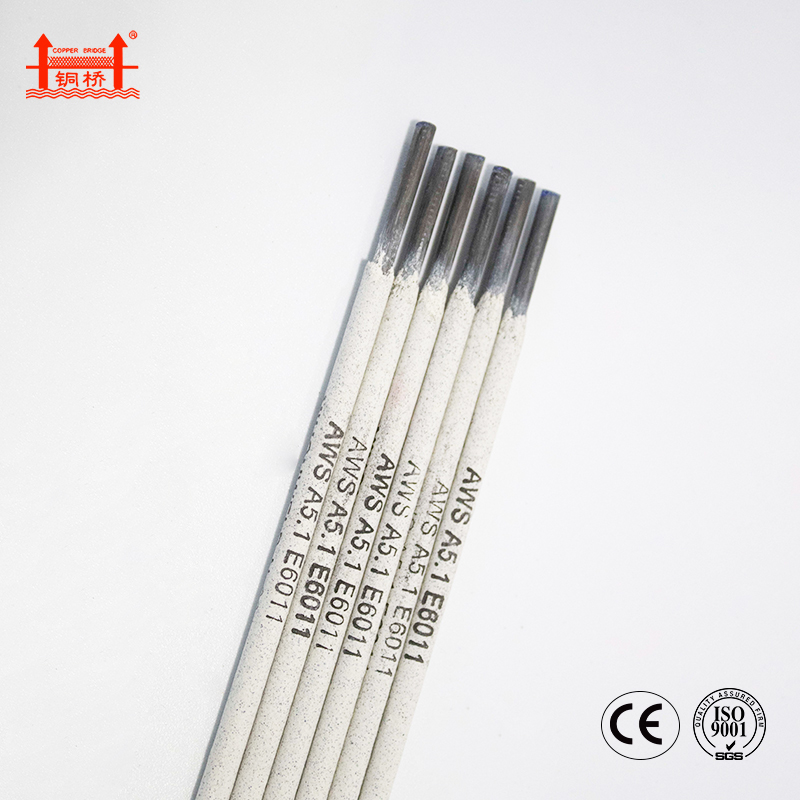

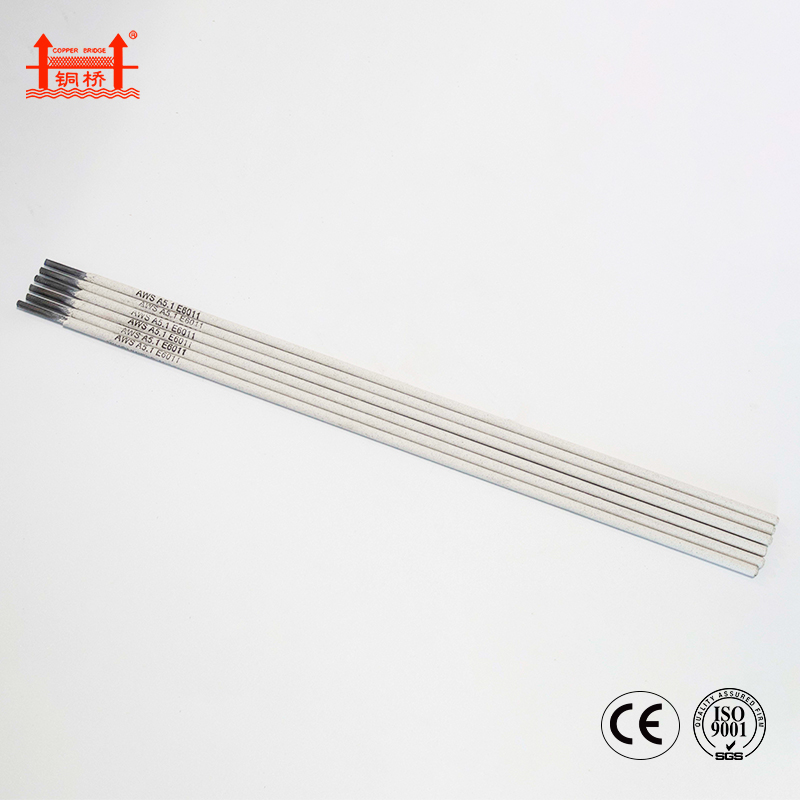

Copper Bridge E6011 Stick Electrode
DESCRIPTION
Copper Bridge E6011 is a cellulosic-coated electrode for carbon steel that can be used with AC or DC+. It supports allposition welding with high welding efficiency and smooth weld appearance. Arc length should be controlled appropriately, weave width should not be too wide, and it is not intended for multi-layer or cover welding.
▶ AVAILABLE DIAMETERS
3/32 in, 1/8 in, 5/32 in, 3/16 in
2.5 mm, 3.2 mm, 4.0 mm, 5.0 mm

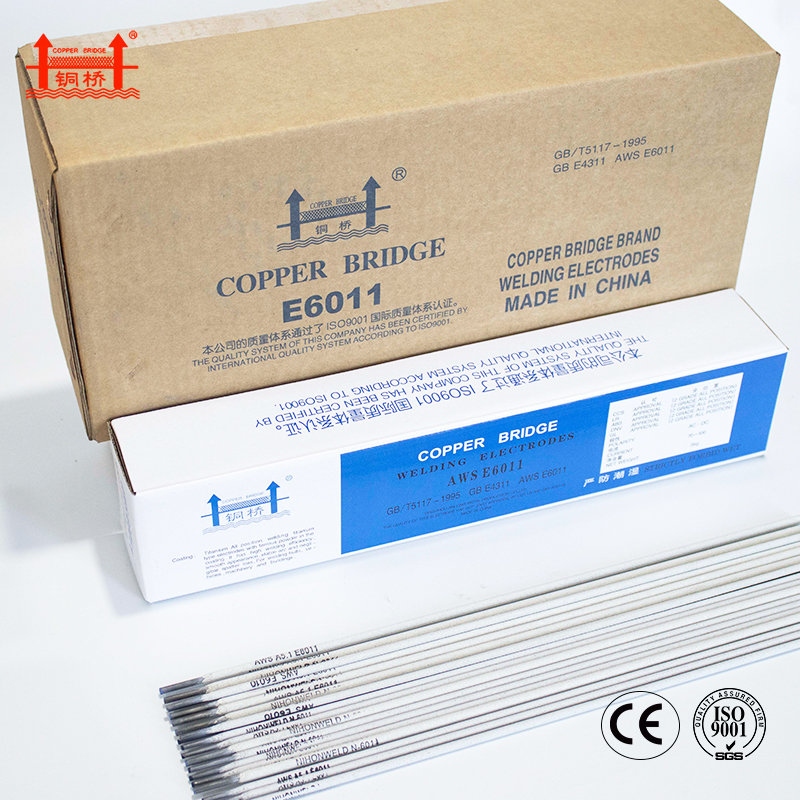

▶ PACKAGING
1.1 lb, 2.2 lb, 4.4 lb, 5.5 lb, 8.8 lb, 11 lb
▶ APPLICATIONS
Mainly used for welding carbon steel of corresponding strength grades. Widely used for pipeline bottom welding and circumferential seam welding.
▶ WELDING PROCESS
SMAW / Stick Welding
▶ POLARITY
AC or DC+
▶ WELDING POSITIONS
All position
CHEMICAL COMPOSITION OF DEPOSITED METAL (WT.%)
| Element | C | Mn | Si | P | S |
| AWS Requirement | ≤0.20 | ≤1.20 | ≤1.00 | N.S. | N.S. |
| Example value | 0.077 | 0.73 | 0.15 | 0.024 | 0.016 |
MECHANICAL PROPERTIES OF DEPOSITED METAL
| Property | AWS / GB-T Requirement | Copper Bridge Typical |
| Tensile Strength | ≥430 MPa (62 ksi) | 490 MPa (71 ksi) |
| Yield Strength | ≥330 MPa (48 ksi) | 396 MPa (57 ksi) |
| Elongation | ≥22% | 28% |
| Impact Value (Charpy V-Notch) | ≥27 J at -30°C (-22°F) | 100 J at -30°C (-22°F) |
RECOMMENDED WELDING PARAMETERS
| Diameter | 3/32 in (2.4 mm) | 1/8 in (3.2 mm) | 5/32 in (4.0 mm) | 3/16 in (5.0 mm) |
| Flat / Horizontal (A) | 60–90 | 70–110 | 110–150 | 150–200 |
| Vertical / Overhead (A) | 50–80 | 60–100 | 100–140 | 140–180 |
NOTES
1. This welding electrode is prone to moisture and should be carefully stored.
2. If the welding electrode is damp, it can be dried at 70°C (158°F) for 30–60 minutes.
3. CE certified. Use controlled arc length and avoid wide weaving, multi-layer welding, or cover welding.
