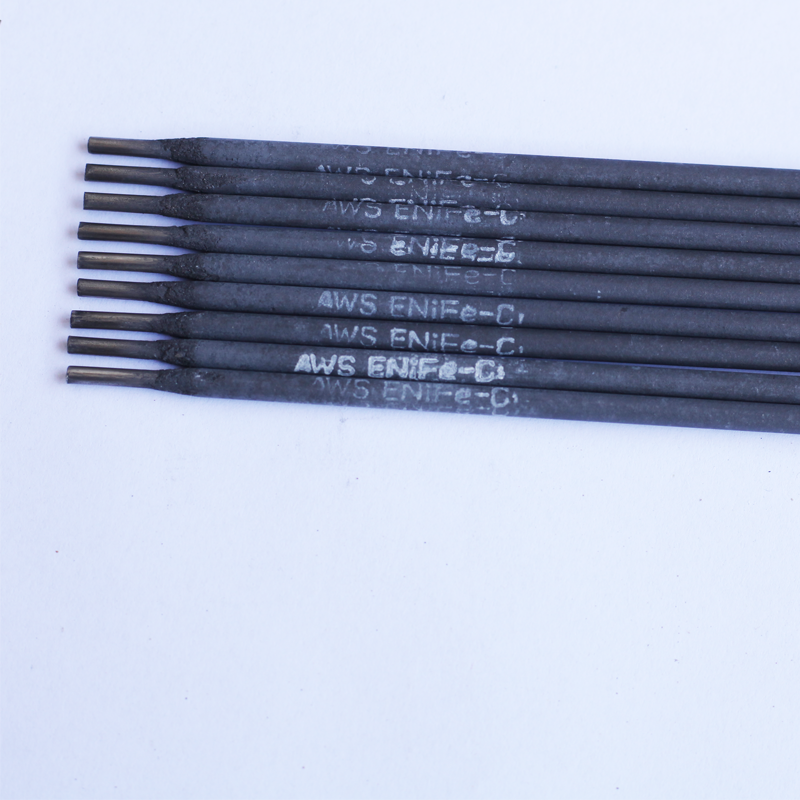

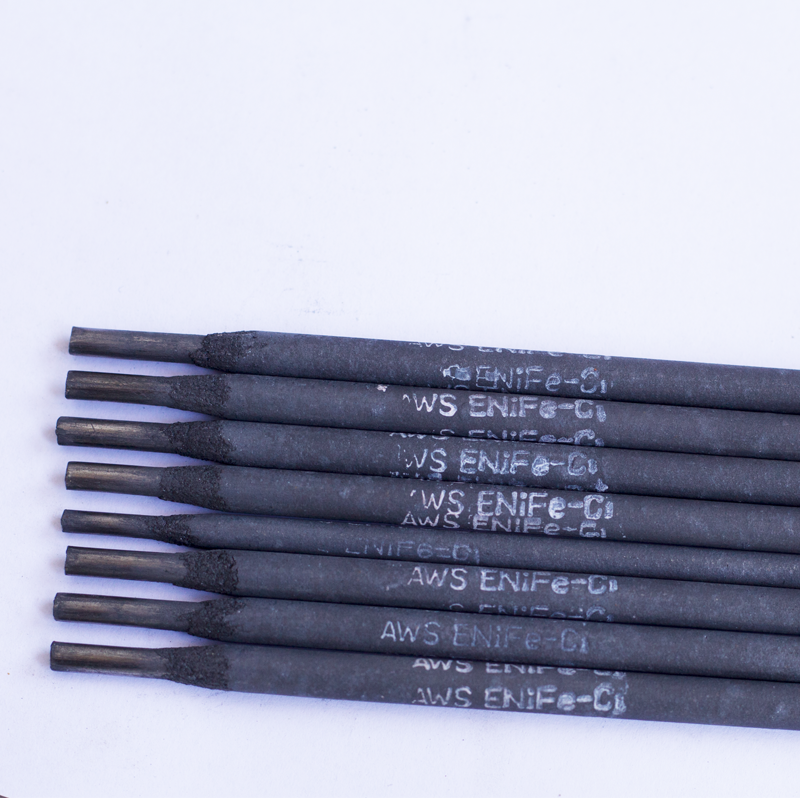

Copper Bridge ENiFe-C1 Cast Iron Stick Electrode
DESCRIPTION
Copper Bridge ENiFe-C1 is a nickel-iron cast iron electrode used for repairing high-strength gray cast iron and nodular cast iron. It offers strong current-carrying capacity, and the weld metal is stronger and more resistant to solidification cracking than other nickel-type electrodes.
▶ AVAILABLE DIAMETERS
3/32 in, 1/8 in, 5/32 in, 3/16 in
2.5 mm, 3.2 mm, 4.0 mm, 5.0 mm
▶ PACKAGING
2.2 lb, 4.4 lb, 11 lb
▶ APPLICATIONS
Mainly used for repairing high-strength gray cast iron and nodular cast iron.
▶ WELDING PROCESS
SMAW / Stick Welding
▶ POLARITY
AC or DC+
▶ WELDING POSITIONS
All position
CHEMICAL COMPOSITION OF DEPOSITED METAL (WT.%)
| Element | C | Mn | Si | S | Ni |
| Fe | Cu | Al | AWS / GB-T Requirement | ≤2.0 | ≤2.5 |
| ≤4.0 | ≤0.03 | 45–60 | Allowance | ≤2.5 | ≤1.0 |
Example value
| 0.60 | 0.27 | 0.95 |
| 0.004 | 54.8 | 42.8 |
| 0.03 | 0.18 | MECHANICAL PROPERTIES OF DEPOSITED METAL |
Not shown in source catalog
RECOMMENDED WELDING PARAMETERS
| Diameter | 5/32in(4.0 mm) | 3/16in(5.0 mm) | i/8in(3.2mm) | 3/32in(2.4 mm) |
| Flat / Horizontal(A) | 50-70 | 70-100 | 100-130 | 130-170 |
| Vertical/ Overhead (A) | 60-90 | 90-120 | 120-150 | 40-60 |
(5/32 in) 120–150 A; 5.0 mm (3/16 in) 150–180 A.
